Name: GT-2720
Category: Five-axis Machining Center
Product details

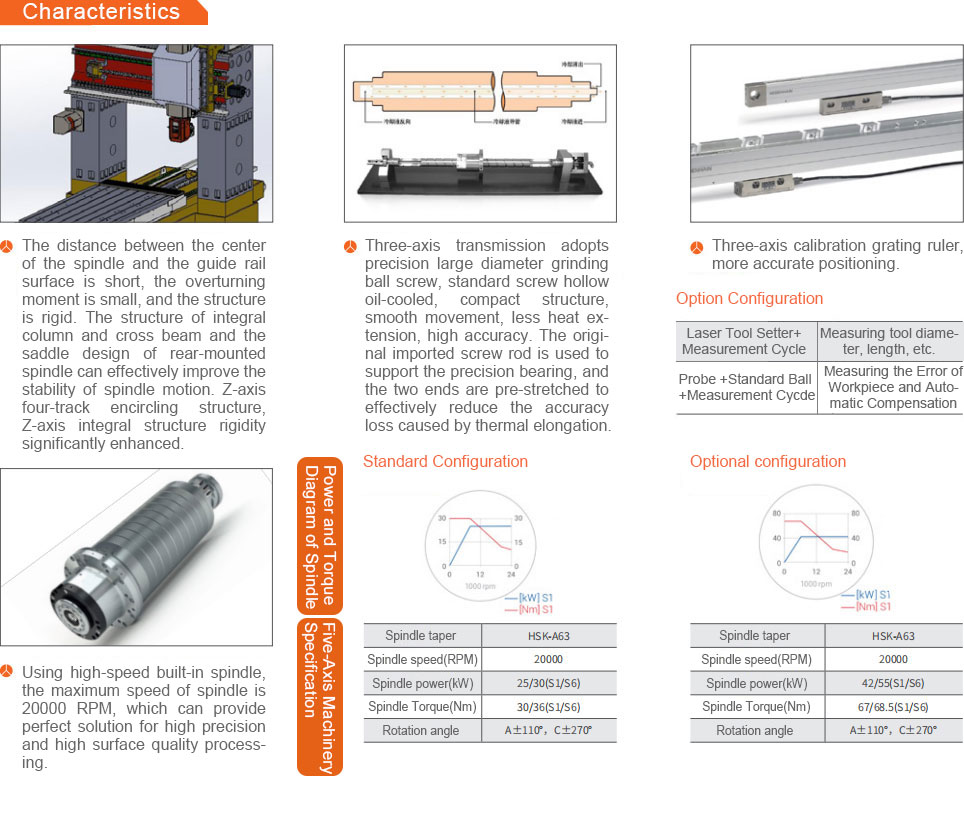

This machine tool is a five-axis sliding saddle machining center. It has the advantages of strong rigidity, symmetrical structure and strong stability. At the same time, it introduces the international advanced dynamic rigidity design concept and optimizes the design of mobile components. The machine tool has strong rigidity and good fast response characteristics, which can meet the needs of high precision aeronautical parts processing and various high precision die processing fields. |
| PROJECT | DESCRIPITION | UNIT | GT-2720 | |
| TRAVEL | Type of XYZ Axis Guide | High Rigid Roller Rail | ||
| X-axis (worktable)/Y-axis (beam)/Z-axis (upper and lower) | mm | 2700/2000/900 | ||
| B Axis (Spindle Swing)/C Axis | ° | ±110°/±270° | ||
| Spindle nose end to working table | mm | 160-1060（approximate value） | ||
| Distance between two columns | mm | 1980（approximate value） | ||
| TABLE | Workbench (long x wide) | mm | 2800×1600 | |
| maximum payload | kg | 10000（Load sharing） | ||
| SPINDLE | Spindle speed RPM | rpm | CVT20000 | |
| Spindle bore taper TYPE | HSK-A63 | |||
| FEED RATE | C00 Fast Feed (X/Y/Z) | mm/min | 20000/20000/20000 | |
| G01 Cutting Feed | mm/min | 1-12000 | ||
| PRECISION | Location accuracy/repetition accuracy | X/Y/Z Axis | mm | 0.008/0.005 |
| Axis A (Swing) | " | 10"/8" | ||
| C-axis | " | 8"/6" | ||
| OTHER | Machine weight | kg | 38500kg（About） | |
